Original price was: $446.00.$92.99Current price is: $92.99.
- 100% High-Quality Guarantee
- Unbeatable quality, unbeatable prices.
- Buy with Peace of Mind
- Top-Notch Quality

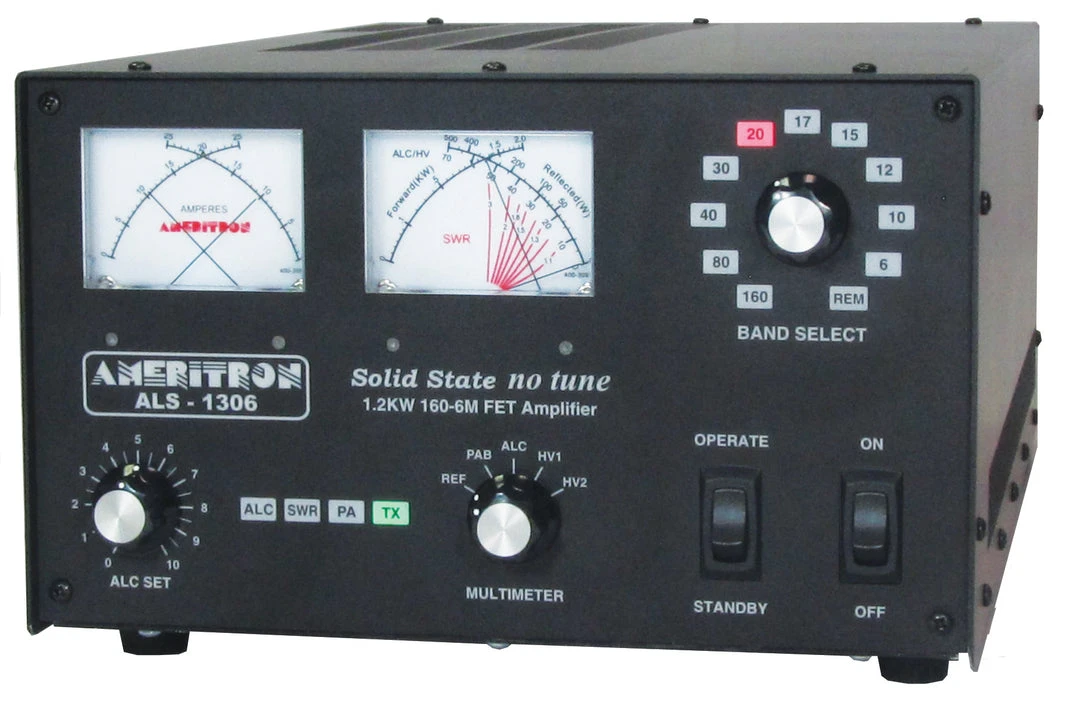

Ameritron HF+6 1200W Solid State Amplifier 1.5-54 MHz . . . 1200 Watts PEP Output, Instant Automatic band switching, no tuning, no warm-up, SWR protected, Quiet Variable-Speed Cooling . . . PEP FWD/REF Metering…PA Balance /ALC Metering and LED Indicator . . . Front Panel Band/Error LEDs . . . more!
ALS-1306 reliability is insured by using eight rugged MRF-150 power FETs. They are mounted on the dual heavy duty heat sink and properly arranged to spread out the heat over a large surface. This is something that other amplifiers using a single power device cannot do. Some FETs actually are a package of several transistors in one large case. This concentrates all of the heat in one small package. They not only are more difficult to cool, if one transistor fails, they all have to be replaced.
The ALS-1306 RF deck operates at 50 Volts for efficient, low distortion linear RF power service. It’s cooled by a whisper quiet cooling fan. Fan speed is regulated by temperature sensors, assuring minimum noise for adequate cooling.
1200 Watts SSBOutput Power Covers 1.5-54 MHz (HF+ 6Meters!)
ALS-1306 runs up to 1200 Watts of clean SSB output power (just 100 Watts drive gives you the full rated 1200 Watts output) for continuous coverage between 1.5-54 MHz. 10/12 Meters is already included.
Operator-friendly layout fits nearly any station configuration. The attractive desktop amplifier unit weighs only 22 pounds. Compact 10W x 6 1/2H x 18 1/2D inches.
SWR Protection prevents amplifier damage if you switch to a wrong band, use the wrong antenna or have a high SWR. Over-power protection enables if output forward power or reflected power exceeds a safe level.
Output power is automatically reduced to prevent amplifier damage by controlling ALC to exciter.
LED-illuminated Cross-Needle SWR/Wattmeter lets you read SWR, forward and reflected peak power simultaneously. You also get ALC, SWR, PA balance and current metering with LED back-light. An Operate/Standby switch lets you run “barefoot”, but you can instantly switch to full power if needed.
Front-panel ALC control!
This exclusive Ameritron feature lets you adjust output power on the convenient front panel display. You get front panel operation, band and error LED indicators like reflected power and bandswitch errors.
Automatic Band Switching!
Put your amplifier and power supply out-of-the-way! Control your amplifier directly from your rig!
ALS-1306 automatic band switching capability reads band data from your transceiver and automatically changes bands as
you make adjustments on your transceiver. An optional interface cable is required for your particular radio. See DB cable section on page 100.
Clean, Modular Construction
Unlike other solid state amplifier designs that are packed so tightly they are unserviceable, Ameritron’s ALS-1306 amplifier construction is super-clean with easy-service modular construction.
ALS-1306 Power Supply
The ALS-1306 is powered by a 50 VDC switching power supply. Comes with a pre-wired cable to plug into the ALS-1306.
This hash-free fully regulated swtiching power supply is only 12 lbs. and measures a compact 10W x 6 1/2H x 9 1/2D
inches. It can be placed conveniently out-of-the-way at your operating station. Output is 50 VDC at 50 Amps to the
ALS-1306. Wired for 220 VAC, selectable to 110 VAC. Draws less than 25Amps at 110 VAC; 12A@220 VAC.
It doesn’t get any better than this . . . Call your favorite dealer for your best price today! You’ve worked hard for a long time, it’s time for you to play hard too!
Videos
Product Manuals
Download Product Manual
12 reviews for Ameritron ALS-1306, AMPLIFIER, HF+6M, SOLID STATE, 1200 W PEP, 220 VAC
Add a review
Related products
John Smith –
The Ameritron ALS-1306 is a game-changer for my amateur radio setup. The solid-state design ensures reliability, and the 1200 W PEP output is more than enough for clear, strong signals. Highly recommend!
Emily Johnson –
I was skeptical about the 220 VAC requirement, but this amplifier has exceeded my expectations. It’s perfect for HF and 6M bands, and the build quality is excellent.
Michael Brown –
Great product, but it took a while to get used to the settings. Once configured, it performs flawlessly. The 1200 W PEP is impressive and delivers consistent results.
Sarah Davis –
The ALS-1306 is a solid performer. It’s quiet, efficient, and easy to integrate into my existing setup. The power output is exactly as advertised.
David Wilson –
A bit pricey, but worth every penny. The amplifier is built to last and delivers exceptional performance on all bands. Definitely a top-tier product.
Jennifer Martinez –
I’ve been using this amplifier for a few months now, and it’s been rock-solid. The 1200 W PEP output makes a noticeable difference in signal clarity.
Chris Anderson –
The Ameritron ALS-1306 is a powerhouse. It’s a bit bulky, but the performance outweighs the size. Works perfectly with my HF and 6M setups.
Laura Thompson –
Setup was straightforward, and the amplifier performs beautifully. The 220 VAC requirement was initially a concern, but it’s handled without any issues.
James White –
This amplifier is a beast! The 1200 W PEP output is incredible, and it handles high power with ease. Solid-state design ensures long-term reliability.
Patricia Harris –
I’m very happy with the ALS-1306. It’s powerful, reliable, and well-built. The solid-state design makes it a great choice for serious operators.
Robert Clark –
The amplifier is fantastic, but the manual could be more detailed. Once I got it set up, though, it’s been performing exceptionally well.
Linda Lewis –
The Ameritron ALS-1306 has transformed my radio experience. The power output is incredible, and the build quality is second to none. Highly recommended!
