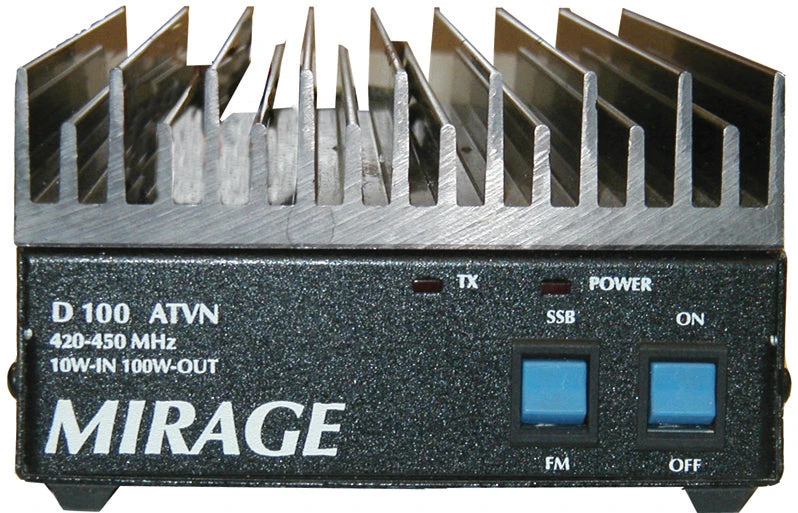

Mirage D-100-ATVN, UHF AMP,2W IN-100W OUT,420-450 MHz

Specially designed for Amateur Television, 420-450 MHz

• RF POWER IN: 500 mW to 5 Watts
• RF POWER OUT: 52 Watts
• CURRENT: 20 Amps
• SIZE: 12″ x 3″ x 5.5″
• WEIGHT: 6 pounds

• 2 W In – 52 W Out (ATV-AVG)
• 2 W In – 82 W Out (ATV-PEP)
• 2 W In – 100 W Out (SSB/FM)

MIRAGE 420-450 MHz Amateur TV Amplifiers
Model	RF Power In	RF Power Out	Current	Size	Weight
D-1010-ATVN	1 W – 15 W	100 W (SSM/FM) 52 W (ATV)	20 A	12” x 3” x 5.5”	6 lbs.
D-100-ATVN	500 mW – 5 W	52 W	20 A	12” x 3” x 5.5”	6 lbs.
